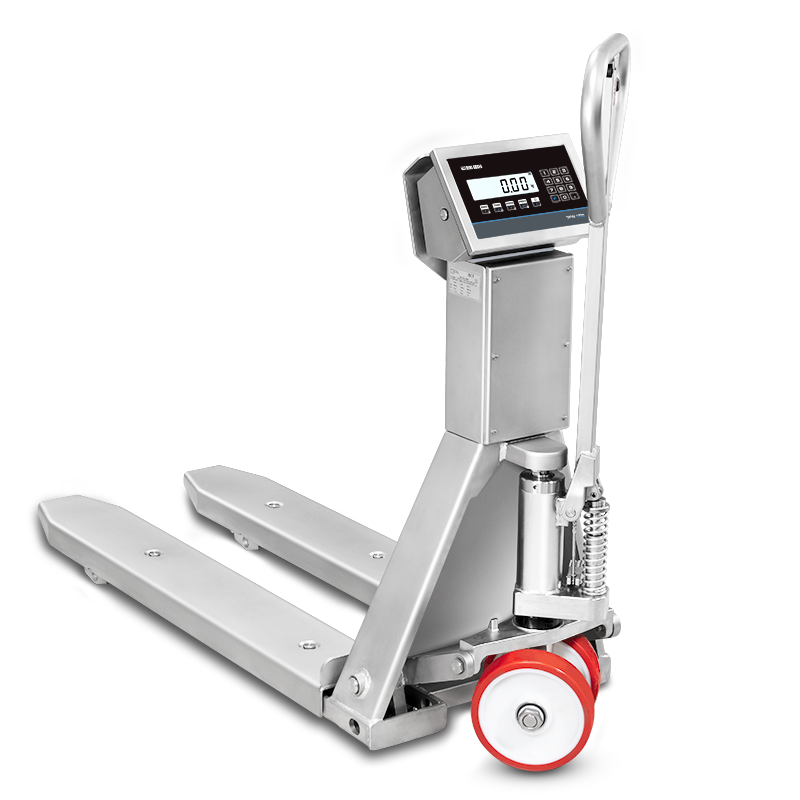

TPWI Hygienx Pallet Truck Scale
High-end pallet truck designed for the food, chemical and pharmaceutical industries and for wet working environments where high standards of hygiene are required. Made entirely of stainless steel, TPWI HYGIENX is designed to be fully sanitised throughout using high-pressure water jets. Manufactured and calibrated in Italy by Dini Argeo using certified sample weights.
ENVIRONMENT: HYGIENIC, WET, CORROSIVE
GMP COMPLIANT
- Standard Maximum lifting capacity: 2,000 kg
- Resolution: internal use: 0.2 / 0.5 kg (approved: 0.5 / 1 kg)
- Calibration and Set-Up parameters configurable from keyboard or PC
- Resistant to washing with high-pressure hot water jets.
- Non-toxic hydraulic oil suitable for the food industry.
- Built as standard with 4 IP69K-certified, stainless steel Dini Argeo load cells for high weighing performance.
- Built-in rechargeable battery with long battery life of up to 100 hours.

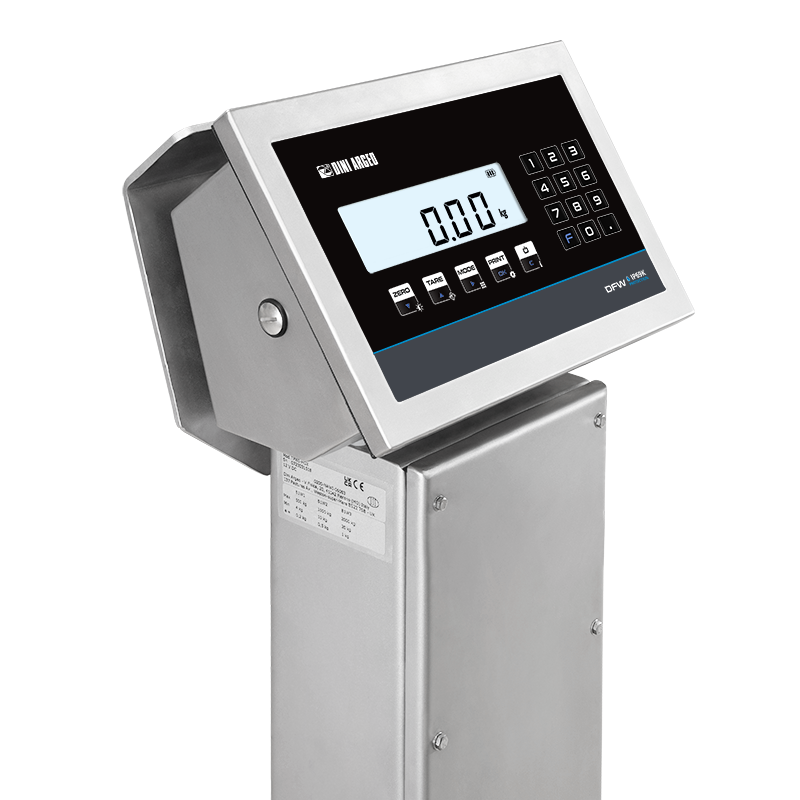

- Weight indicator with IP69K stainless steel waterproof housing as standard; easy to clean and resistant in harsh and corrosive environments.
- The large, high-contrast 25mm LCD display for viewing also in low light conditions.
- Each pallet truck is tested and supplied with its own certificate to guarantee the declared precision.
Main Functions
- Operating modes selectable directly by the user via a dedicated key*:
- High resolution display x 10.
- Precision weighing with temporary recalibration using a sample weight (for internal factory use)
- Net/gross
- lb/kg conversion
- Free conversion factor (for litre-metering systems, etc.)
- Weight totalisation
- Formulation
- +/- control with quick target and threshold entry
- Percentage weighing
- Percentage dosage with programmable target
- Piece counting
- Hold
- Alibi memory (optional)
- Access to user menu via a dedicated key, for weighing filter, date and time, setpoint and user-accessible tar
Technical Features

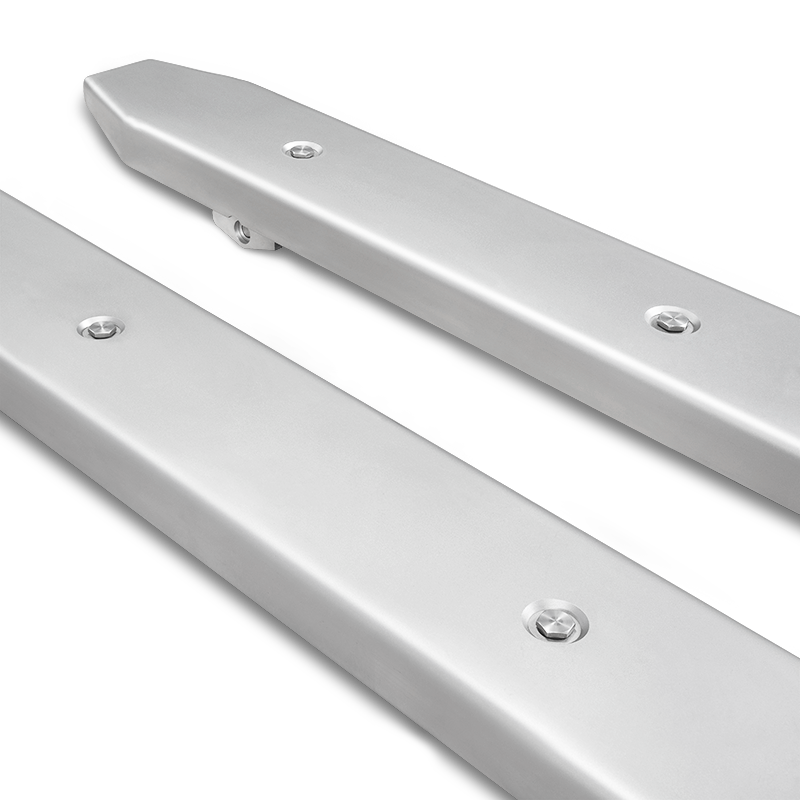

- Lowered profile forks, only 85 mm.
- Fork dimensions 1180 x 550 x 85 mm.
- Removable fork covers for inspection and cleaning of the area inside the forks.
- Lifting height 200 mm.
- Weight approx. 135 kg.
- IP68 watertight column.
- 100% AISI 304 stainless steel pallet truck.
- Nylon steering wheels and double loading rollers with polyurethane coating.
- 200 mm diameter steering wheels.
- Lift pump made of AISI 304 stainless steel allowing controlled lowering of the forks.
- Waterproof membrane keypad with 17 numeric/functional keys.
- 230Vac 50Hz battery charger with EU plug as standard.
- Battery charging socket with double protection against water and humidity.
- Configurable RS232/C bidirectional port for PC, radio module, WIFI or handheld terminal
- Working temperature: -10° / +40°
