DS4 Metal Detector

DS4 Metal Detector

The DS4 Metal Detector combination system offers unbeatable metal detection performance. Constructed from stainless steel, designed with hygiene in mind and protected to IP66 it is suited for almost every production environment.

The DS4 combination system has 4 levels of password protection – operator, supervisor, engineer and admin. These offer each user access to the controls that they require.

All data can be downloaded via USB and viewed on most computers with the correct software installed.

The removal of the conveyor is easily achieved without the use of tools. The quick release, cantilever design allows the checkweigher conveyor belts to be easily replaced in seconds; maximizing line uptime without compromising machine performance.

All systems can be designed to comply with BRC and all supermarket COP’s. These can be fitted at the time of purchase or retrofitted later if required. We also offer tailor made service packages to suit each production schedule. Click here for more information on the service packages we can offer.

DS4 Checkweigher Metal Detector Combination System Overview

  • Compact machine design with configurations available to suit product size and required throughput.
  • Tool free conveyor removal with quick release belt system.
  • Tubular steel frame for ease of maintenance and cleaning.
  • Conveyor drive via low voltage brushless DC motors, with digital speed control.
  • Product library with capacity to store up to 99 products, giving fast product changeover.
  • Pack tracking through the system via integrated encoders
  • All production data archived to memory for future recall.
  • Error reporting / hardware systems check.
  • Data output via USB port or ethernet cable to factory management software.

Retail and BRC Specifications

  • Controlled reject bin access via front panel
  • Reject confirmation and bin full sensors.
  • Air pressure monitor.
  • Pack tracking via gating photocells and integrated motor encoders.
  • Interlocked machine covers.
  • Audible and visual alarms via light stack.
  • Test facility for reject and fail safe systems.

DS4 Combination System Technical Specification

Technical Specification
Machine ThroughputUp to 120 Packs Per Minute
Finish304 Grade Stainless steel with PET-G or Stainless Steel Guards
Supply Voltage100-240V, 1PH/N & E, 6A
Pneumatic requirements5-8 Bar (72-120 psi)
Operating Temperture0-40 degrees centigrade
IP RatingIP66
Belt TypeAnti-Static Elasticated PU Belt
ReportingBatch/ Production/ Shift
Data RetrievalUSB and/or ethernet
Standard Aperture Sizes350mm Wide x 150mm High
350mm Wide x 200mm High
350mm Wide x 250mm High
450mm Wide x 150mm High
450mm Wide x 200mm High
450mm Wide x 250mm High
Standard Belt Widths200mm Wide
250mm Wide
300mm Wide
350mm Wide

Looking for a standalone checkweigher?

Looking for a Checkweigher Metal Detector Combination System ?

Or if you would like to enquire about our checkweigher combination system, please call us on 01543 687090. We will be happy to help.

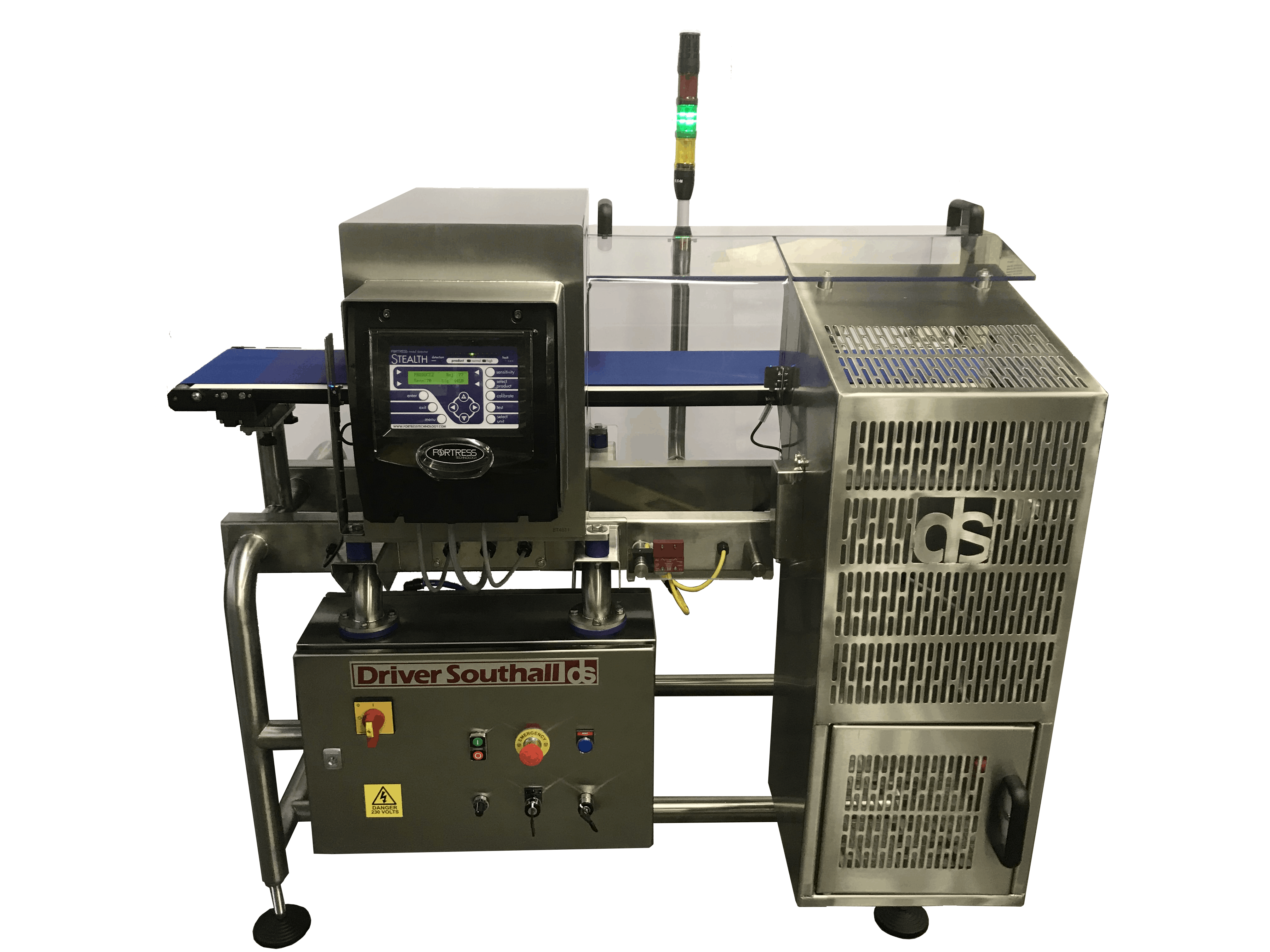

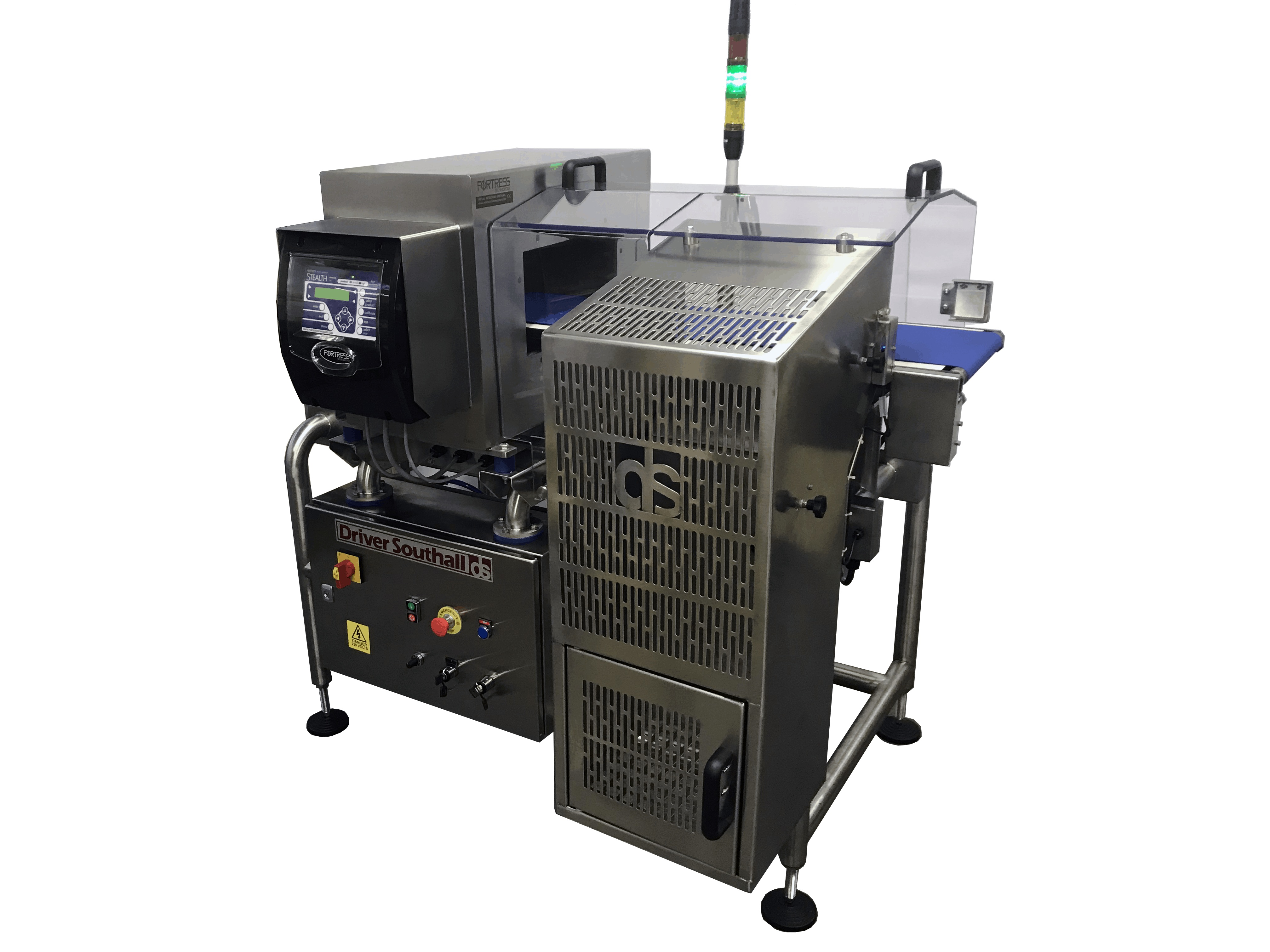

DS4 Metal Detector 3DS4 Metal Detector SideDS4 Metal Detector 1
