TE HYGIENX® Series Single Cell Platforms
The new TE HYGIENX platform is designed for use in wet environments and where HACCP-compliant standards are required.
Ideal for food, chemical, pharmaceutical and cosmetics industries.
ENVIRONMENT: HYGIENIC, WET, CORROSIVE
- The TE HYGIENX is constructed entirely of Grade 316 Stainless Steel that has been micro-bead blasted and electropolished. This ensures the platform is entirely washable to prevent the build-up of bacteria in the most critical spots.
- The IP68 and IP69K rated load cell means that the entire scale can be sanitised with high-temperature and high-pressure jets of water.
Key Features
- An HCV-EU certified product (C0553035-0001) for food environments compliant with the hygiene requirements of the HACCP standards.
- IP68/IP69K rating, suitable for use in humid environments and for complete scale sanitisation using high-temperature and high-pressure water jets.
- AISI 316 stainless steel structure designed to be opened for inspection with removable seals for easy sanitisation. Designed to prevent the accumulation of water and dirt residues.
- Integrated bubble level.
- Four limit switches for overload protection.
- Non-slip feet for environments with high hygienic requirements, ideal for use on stainless steel counters even in the presence of water.
- Food-grade rubber seals.
- Equipped with two transport blocks to protect the load cell.
Technical Features

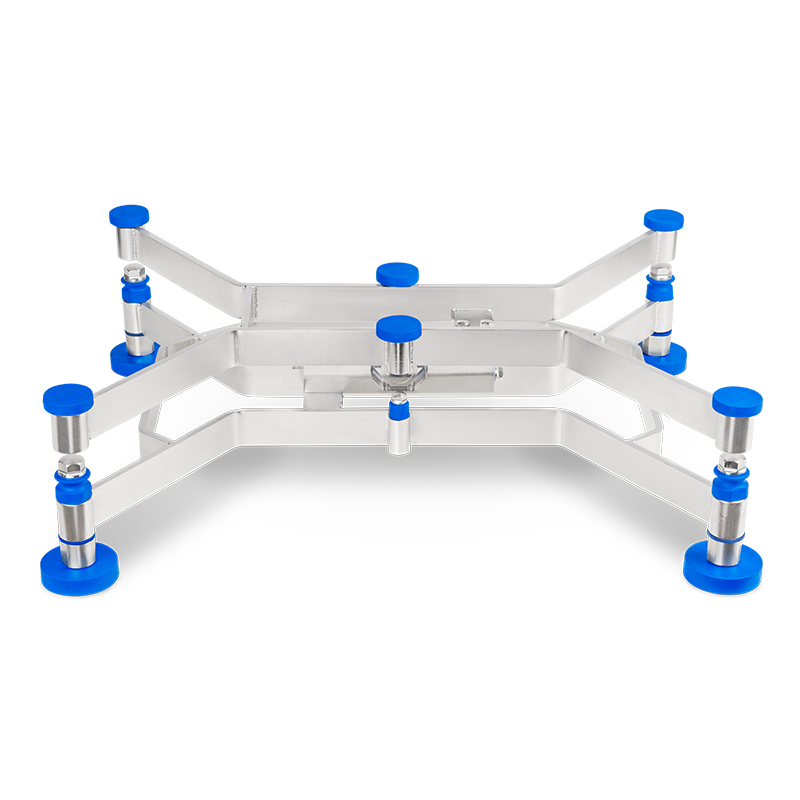

- Metal plate structure structure, mechanical parts, small parts and loading surface made of AISI 316 stainless steel.
- Platform with continuous welding throughout.
- Hermetically sealed stainless steel load cell with IP68/IP69K rating, suitable for use in wet environments. OIML R60 approved C6 class, with a 3-metre-long shielded cable.
- Direct connection of the load cell to the weight indicator, without connectors using a cable gland.
- Sensitivity: 2mV/V +/- 10%.
- Max. power supply: 15 Vdc.
- Surface finish for food environments, micro-bead blasted and electropolished.
- HCV laser marking for product identification.
- HCV-EU certified loading surface for use in direct contact with food.
Available Options

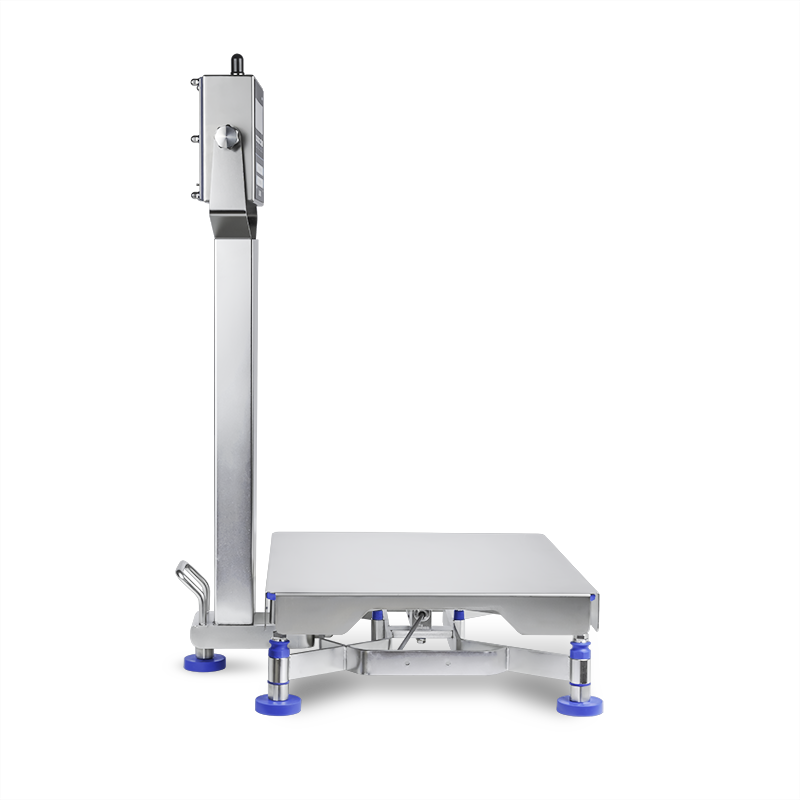

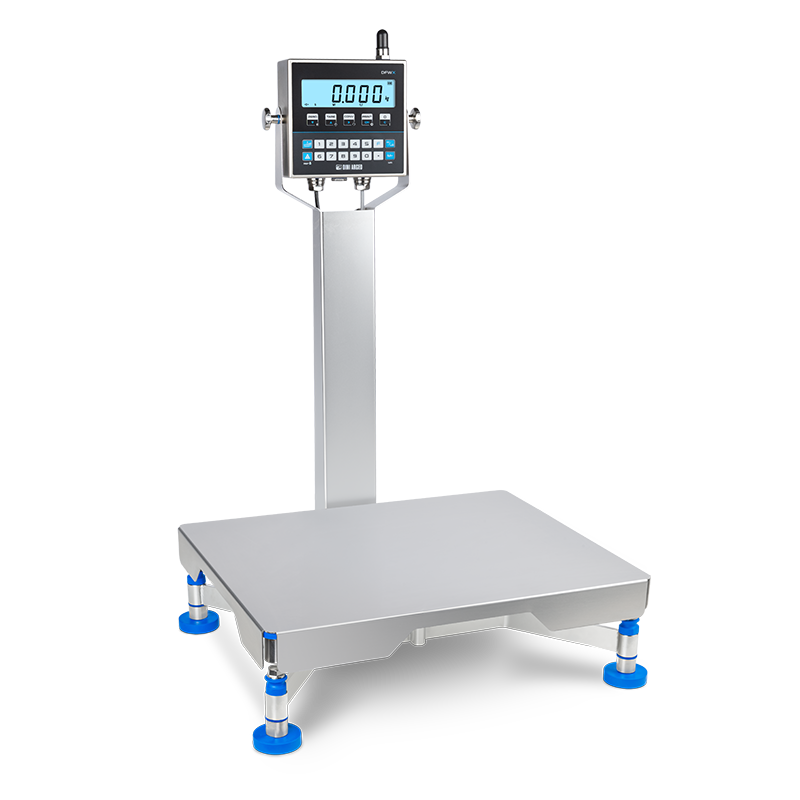

- Optional column for Dini Argeo weight indicator, for integrated installation. Structure designed for easy cleaning, with comfortable support foot and ergonomic carrying handle.
- Shorter load cell cable reduced from 3 metres to 1 metre.
- Raising frames made of AISI 304 stainless steel.
- AISI 304 stainless steel trolleys for mobile weighing stations.
- DFWX-HGX weight indicator with AISI 316 stainless steel case.
Models Available
| Code | Platform Size | Capacity | Resolution |
|---|---|---|---|
| HGXS3 | 230mm x 330mm | 3kg | 0.5g |
| HGXS6 | 230mm x 330mm | 6kg | 1g |
| HGXS15 | 230mm x 330mm | 15kg | 2g |
| HGXT6 | 330mm x 330mm | 6kg | 1g |
| HGXT15 | 330mm x 330mm | 15kg | 2g |
| HGXT30 | 330mm x 330mm | 30kg | 5g |
| HGXQ15 | 400mm x 400mm | 15kg | 2g |
| HGXQ30 | 400mm x 400mm | 30kg | 5g |
| HGXQ60 | 400mm x 400mm | 60kg | 10g |
| HGXM30-1 | 400mm x 500mm | 30kg | 5g |
| HGXM60-1 | 400mm x 500mm | 60kg | 10g |
