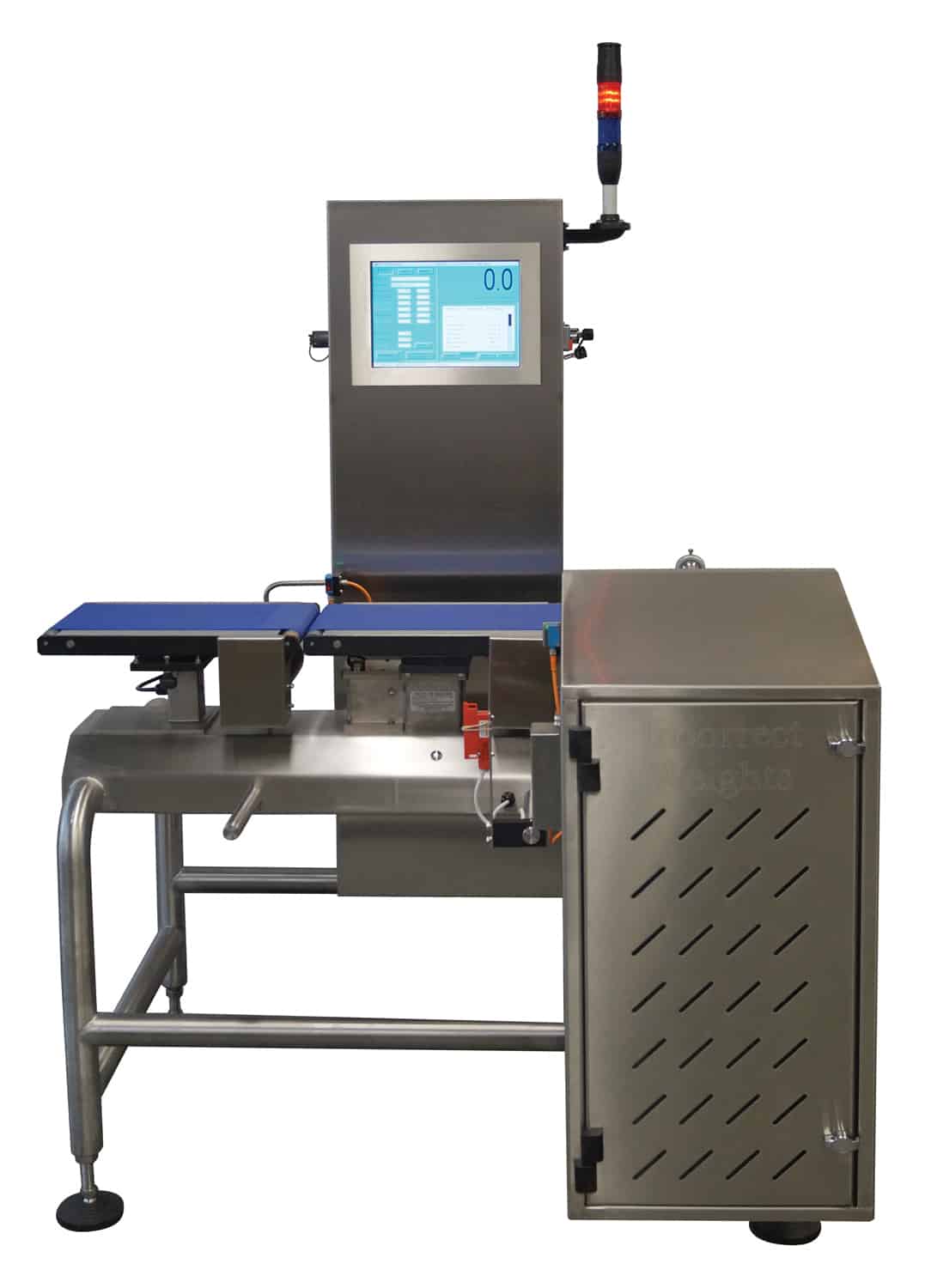

DS300S Checkweigher

DS300S Checkweigher

The DS300S CW Checkweigher offers incredible checkweighing performance. Constructed from Stainless Steel and hygienically designed  the DS300S CW is perfect for any food production area. The machine design along with purpose built electronics and carefully selected components offers increased reliability, flexibility and is compliant with the supermarkets’ latest Codes of Practice.

  • 304 Grade Stainless Steel construction, specifically designed for easy wash down and cleaning
  • Electrical and electronic protection to IP65 (minimum)
  • A comprehensive series of electronics offer increased reliability, flexibility and memory for over 1000 products and 20 years worth of production data
  • An easy clean, Durable TFT touch screen display, presents an array of statistical and graphical data
  • Full Fault Diagnostics, Auto Zero Correction and Digitally Variable Belt Speed
  • Integrated event logging for total audit trail
  • Full Live Range, Fast Response Loadcell specifically designed to comply with both average weights and minimum weights legislation, capable machine accuracies of +/- 0.2g
  • Integrated Ethernet module for connection to Factory Management software
  • Light-weight conveyor design driven by extremely reliable low voltage brushless dc motors
  • Powerful embedded 32 bit processor featuring feedback control and average weight steering
  • Standard Capacity of 3kg, medium capacity of 10kg and heavy duty capacity of 50kg

Optional Upgrades

  • Reject bin door sensing with electronic access from HMI
  • Reject confirmation and bin full sensors
  • Audible and visual alarms via traffic light beacons
  • Test facility for reject systems and failsafe systems
Data Retrieval:USB/Ethernet/Printer
IP Rating:IP65
Belt Type:FDA Approved Elasticated PU Belt
Reporting:Batch/Production/Shift/Event Logs
Construction:304 Grade Stainless Steel Frame with PET-G/Stainless Steel Cover
Electrical:100v - 240v (50-60hz) 1PH/N&E 2-4A
Weight Range:20g-3000g
Pneumatic:5-8 Bar (72-120 psi)
Operating Temperature:0 - 40 Degrees Centigrade
Supply Requirements:
